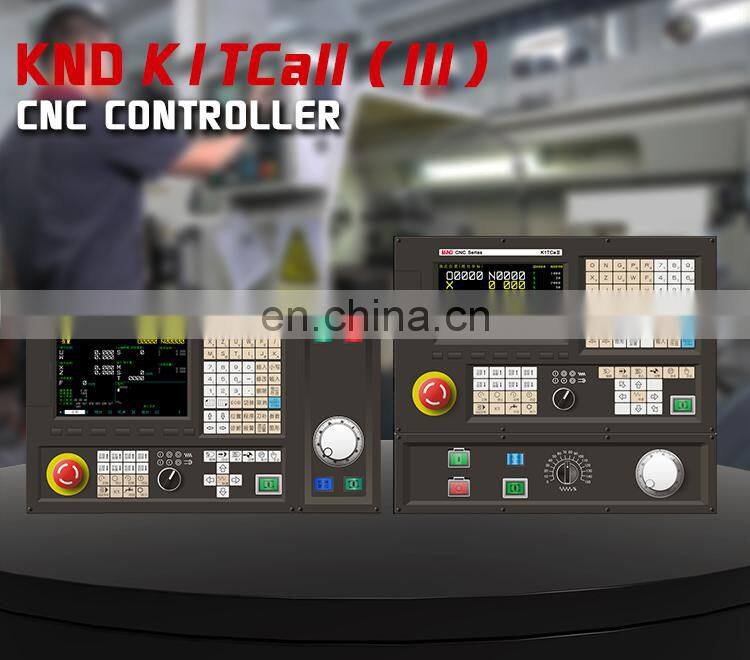

K1TCaII(III)

K1TCaII(III) adopts 7-inch display screen, and the machine panel is integrated with NC panel, which is simple to operate. The system software adds a number of new functions with stable performance and strong anti-interference ability. It adopts digital pulse control and can be adapted to SD series integrated servo driver. It is suitable for economical machine tools.
Product features
●Maximum 3 feed axes.
●Integrated panel, compact structure, suitable for economical lathe.
●7-inch TFT color LCD with resolution of 800 × 480。
●The maximum fast speed is 60m / min and the maximum feed speed is 30m / min.
●Digital spindle can be configured to complete tapping, positioning, etc.
●Support the second generation of high-speed and high-precision.
●It has the functions of digital spindle thread and workpiece coordinate system.
●It has the functions of tip radius compensation and corner arc compensation.
●The number of native di / DOS is 40 / 24, which is scalable.
●Support pitch compensation to improve the accuracy of the machine tool.
●Configure SD020 servo driver, absolute encoder motor.
Specification
project
Specifications
K1TCaII
K1TCaIII

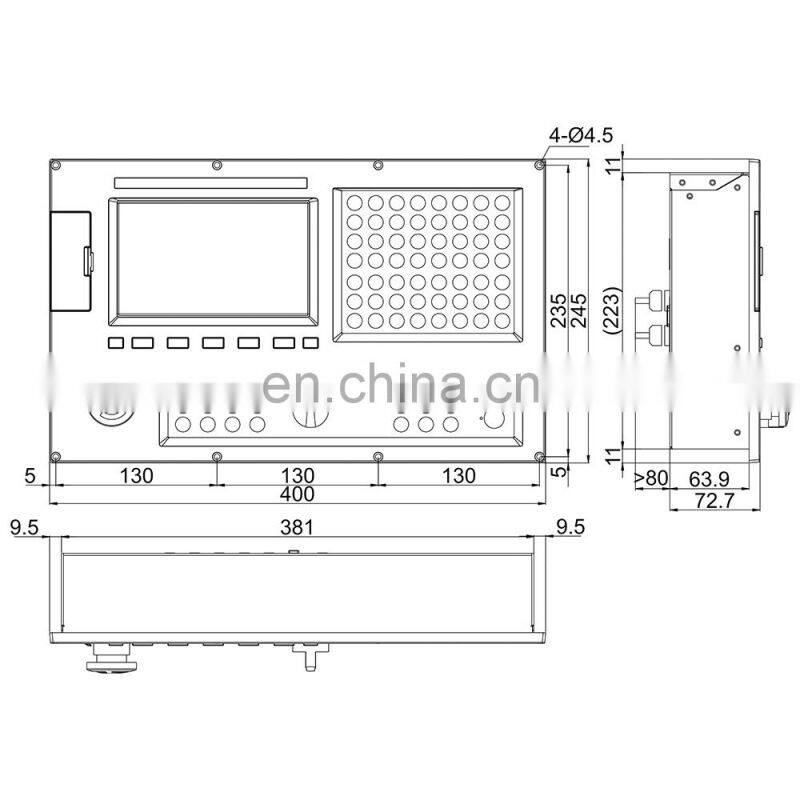

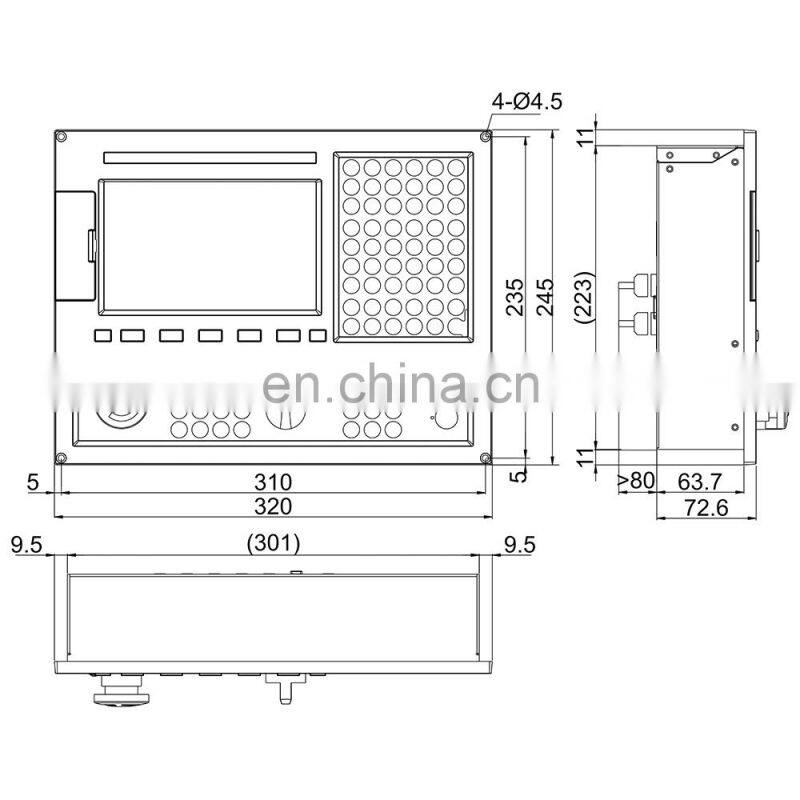

Overall dimension
400×245(mm)
320×245(mm)
LCD screen
7 inches, 800 × 480 resolution
Communication mode
Command pulse
Axis control function
Maximum number of control axes: 4 axes
Maximum number of NC axes: 3 axes
Shaft type: linear shaft, class A rotating shaft, class B rotating shaft, class C rotating shaft and class D rotating shaft
Shaft interlock, emergency stop, soft limit, hard limit
Preparation function
43 G codes, including positioning, linear interpolation, circular interpolation, thread cutting and interpolation, back reference point, coordinate system, tool compensation, cycle command, pause, etc
Interpolation function
G00、G01、G02、G03、G32、G34、G07.2、G78.1
Feed function
Rapid feed (G00), feed per minute (G98), feed per revolution (G99), pause (G04)
Maximum speed: 60000mm / min
Maximum feed speed: 30000mm / min
Fast magnification: F0, 25%, 50%, 100%
Feed rate: 0 ~ 150% (16 gears)
High speed and high precision: front acceleration and deceleration control, 6 kinds of acceleration and deceleration curves and speed smoothing control
Reference point
Automatic return to reference point (G28), automatic return from reference point (g29), 2nd and 3rd reference points (G30)
Thread function
Pitch: 0.01 ~ 500mm (metric system), 0.06 ~ 25400 thread / inch (British system)
Single head / multi head, metric / imperial straight thread, tapered thread, end face thread, equal pitch and variable pitch thread
The length, angle and speed of thread tailing can be set
Digital spindle thread
Coordinate system and size
Minimum instruction unit: 0.001mm
Maximum stroke: ± 9999999 × Minimum instruction unit
Workpiece coordinate system G50, G54 ~ G59
Diameter / half programming, absolute / incremental programming
Jump function
G31
Spindle function
Analog spindle: 1, digital spindle: 1
Gear control (S01 ~ S08), analog control (S5 digits), digital spindle control
Analog spindle automatic / manual shift, digital spindle positioning, and support the "speed / position" switching of digital spindle
Spindle magnification: 50 ~ 120% (Grade 8), analog voltage: 0 ~ 10V (stepless)
1-way spindle encoder feedback, and the number of encoder lines can be set
When the spindle is running, chuck control, table tail control, spindle constant linear speed control (G96 / g97), G93 tapping, spindle speed clamping, etc
Tool function
Number of tool offsets: 16 groups
Tool length compensation, tool radius compensation, tool wear compensation
Tool setting operation: absolute tool setting, relative tool setting, tool compensation adjustment, etc
Auxiliary function
Standard M code: 42
Special M code:M21~M24,M71~M74,M91~M94
Program storage and editing
Program capacity: 640K (built-in), expansion: direct U disk access (unlimited capacity), electronic disk: 3
Program programming: relative programming, absolute programming, mixed programming, decimal point programming
Program editing: program typing, modification, deletion, insertion, retrieval, copying, moving, merging, etc., U disk program editing
Multi segment MDI program editing and running
Subroutine call (maximum 63 levels of nesting)
Program check function
Fast graphic preview of program track, empty operation, single-stage operation, machine tool lock, auxiliary lock, program stop selection and program jump selection
Simplify programming functions
Single fixed cycle (G90 / G92 ~ G94), multiple fixed cycle (G70 ~ G76)
Compensation function
Reverse clearance compensation: there are three kinds of clearance compensation: positioning, cutting and non positioning cutting, with the range of 0 ~ 8mm
Pitch error compensation: 128 compensation points / shaft, compensation amount of each point: ± 0.1mm
interface
Language: Chinese, English
Graphics: tool path graphics
Current position, program, parameter setting and display, graphic setting and display, diagnostic data, alarm, ladder diagram, timing, piece work, date, time, speed, etc
Index information: system operation list, G code list, parameter list, diagnosis list, macro instruction list, alarm list and other user-defined information
Alarm: P / s alarm, driver alarm, over range alarm, system error alarm, external alarm, etc
Operation management
Operation mode: automatic, manual, input, edit, mechanical zero return, program zero return, single step (handwheel)
Program operation mode: automatic operation, MDI operation, DNC (USB flash disk, RS232) operation, empty operation, single section operation and handwheel control operation
Program switch, parameter switch, time limited shutdown, startup, parameter and program password protection
PLC function
Built in standard PLC
DI/DO(total):40/24
External interface
Feed shaft pulse interface, spindle encoder interface, analog spindle interface
Machine tool panel interface, additional panel interface and separation operation box interface
Di interface, do interface, tool holder interface
RS232 / 485 interface, USB interface
Adaptive drive
SD020 AC servo driver
ZD200 spindle driver

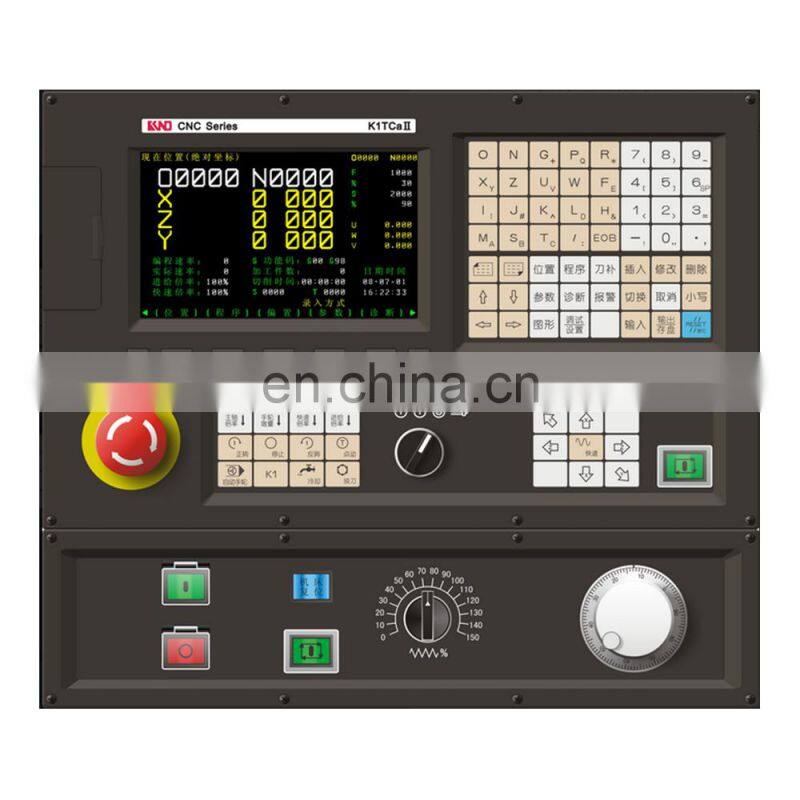

K1TCaII

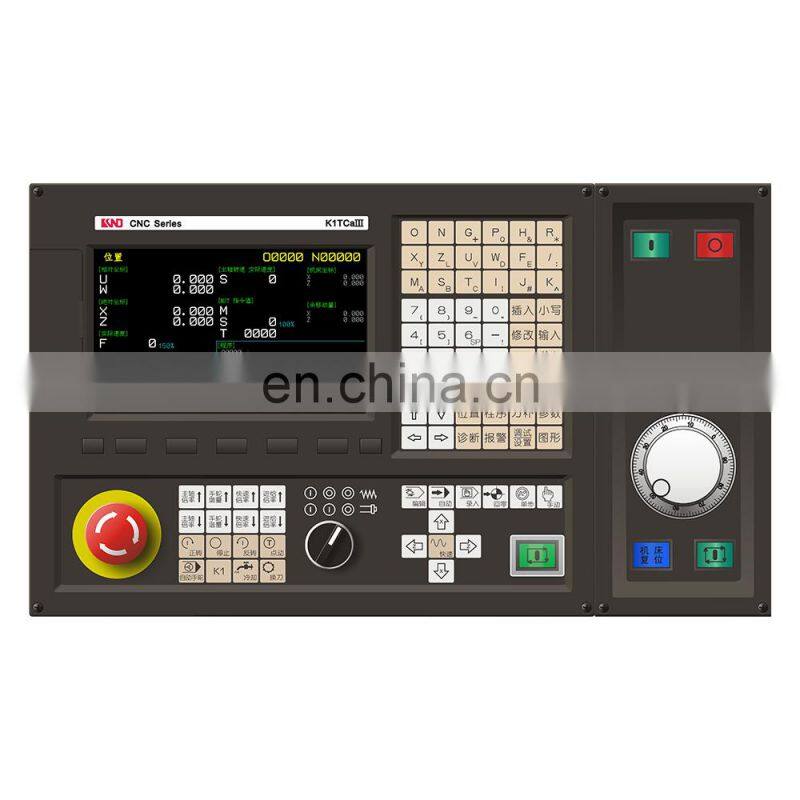

K1TCaIII
