Number of control axes: 2 axes (X, Z)

Number of linkage axes: 2 axes

Feed shaft function

Minimum input increment: 0.001mm (0.0001inch) or 0.0001mm (0.00001inch) Optional

Minimum instruction increment: 0.001mm (0.0001inch) or 0.0001mm (0.00001inch) Optional

Large stroke: ±99999999 x minimum instruction increment

Fast moving speed: maximum 60m/min

Rapid rate: F0, 25%, 50%, 100% four levels of real-time adjustment

Feed rate: 0 ~ 150%, a total of 16 levels of real-time adjustment

Interpolation methods: linear interpolation, arc interpolation (support three-point arc interpolation), thread interpolation, rigid tapping

Automatic chamfering function

Thread function

Normal thread (follow spindle)/ rigid thread

Single head/long head male inch straight thread, taper thread and end thread, equal pitch thread and variable pitch thread

The length, Angle and speed characteristics of thread withdrawal can be set

Thread pitch: 0.01mm to 500mm or 0.06 teeth/inch to 2540 teeth/inch

Acceleration and deceleration function

Cutting feed: front acceleration and deceleration linear, front acceleration and deceleration S type, rear acceleration and deceleration linear, rear acceleration and deceleration exponential type

Fast moving: front acceleration and deceleration linear, front acceleration and deceleration S, rear acceleration and deceleration linear, rear acceleration and deceleration exponential

Thread cutting: linear, exponential optional

The start speed, end speed and time of acceleration and deceleration are set by parameters

Main function

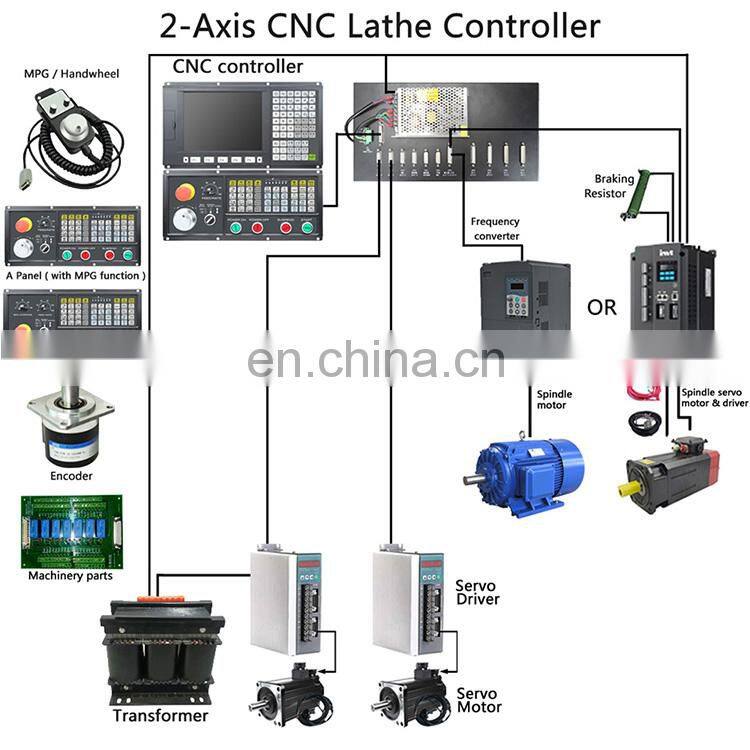

2 channels 0 ~ 10V analog voltage output, support dual spindle control

1 way spindle encoder feedback, spindle encoder line number can be set (100p/r ~ 5000p/r)

Transmission ratio between encoder and spindle :(1 ~ 255) (1 ~ 255)

Spindle speed: can be given by S code or PLC signal, speed range 0r/min ~ 9999r/min

Spindle ratio: 50% ~ 120%, a total of 8 grades of real-time adjustment

Spindle constant line speed control

Rigid tapping

Function of cutting tool

Tool length compensation

Tool tip radius compensation (Type C)

Tool wear compensation

Tool life management

Knife setting method: fixed point knife setting, trial cutting knife setting, back reference point knife setting, automatic knife setting

Tool deviation execution mode: modify coordinate mode, tool movement mode

Precision compensation

Reverse clearance compensation

Memory pitch error compensation

The PLC function

Two-stage PLC program, up to 4700 steps, level 1 program refresh cycle 8ms

PLC program communication download

Support PLC warning and PLC alarm

Support multiple PLC programs (up to 20), the current running PLC program can be selected

Basic I/O: 52 input /52 output

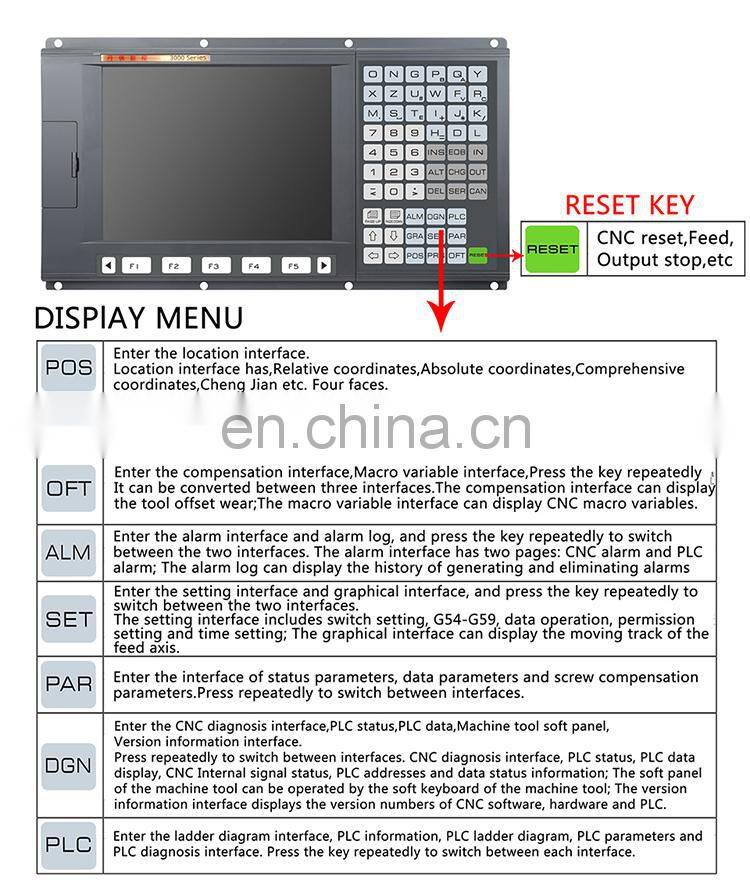

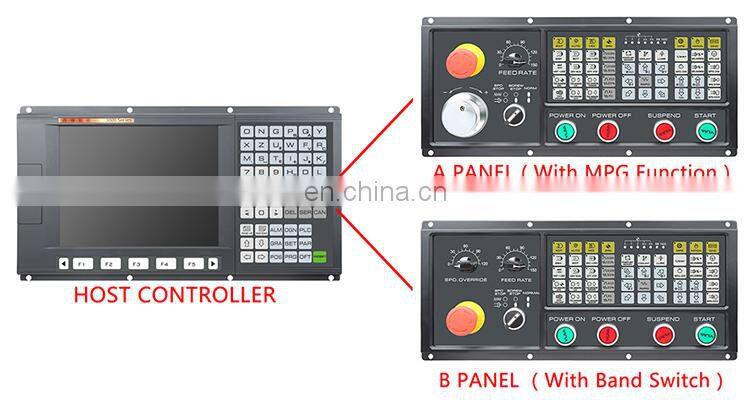

The man-machine interface

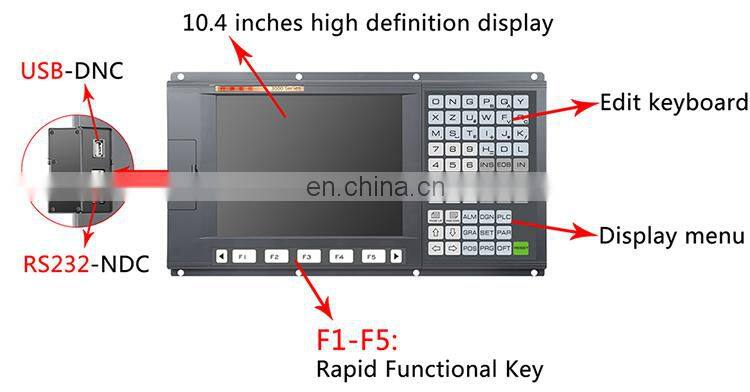

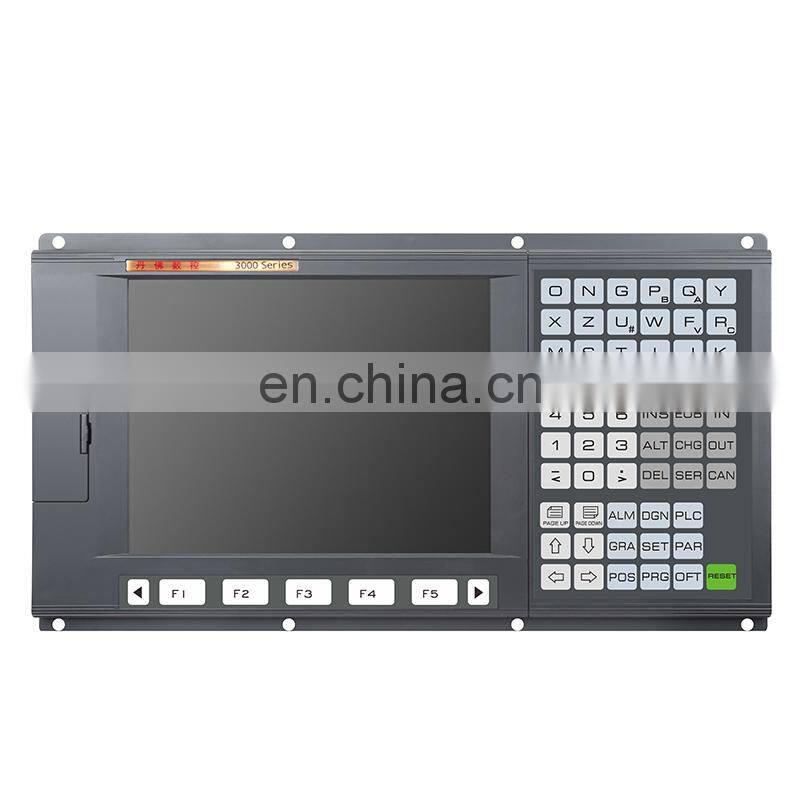

10.4-inch widescreen LCD with 800×600 resolution

Display in Chinese, English and other languages

Two dimensional tool path display

Real time clock

Operation management

Operation mode: edit, automatic, input, machine zero back, hand wheel/single step, manual, program zero back

Multi-level operation permission management

Alarm log

The program to edit

Program capacity: 56MB, 400 programs (including subroutines, macroprograms)

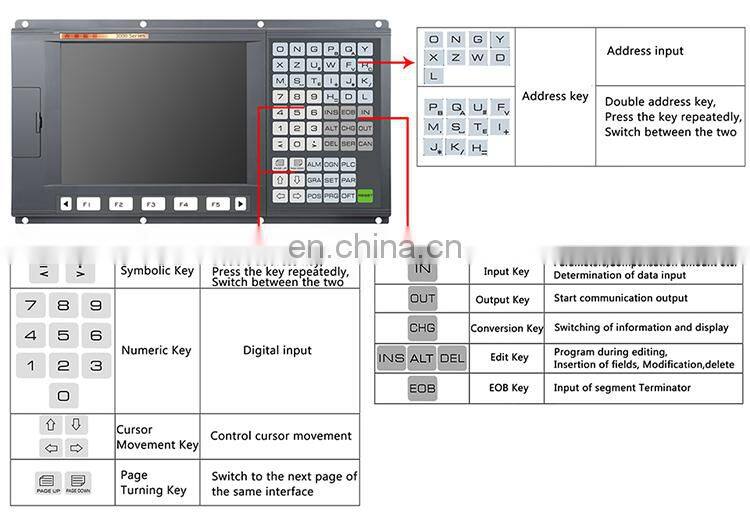

Edit function: program/program segment/word search, modify, delete, copy, paste

Program format: ISO code, support statement macro code programming, support relative coordinates, absolute coordinates and mixed coordinates programming

Program call: support macro program call with parameters, 4 levels of nested subroutines

Communications functions

RS232: parts program, parameters and other files two-way transmission, support PLC program, system software serial port upgrade

USB: U disk file operation, support PLC program, system software U disk upgrade

Safety features

Emergency stop

Hardware travel limit

Software trip check

Data backup and recovery

code

Function

code

Function

G00

quickly locate

G50

floating workpiece coordinate system

G01

Linear interpolation

G54-G59

 Set the coordinate system of the workpiece

G02

clockwise arc interpolation

G65

macro code modeless call

G03

counterclockwise arc interpolation

 G71

axial rough turning cycle

G04

stop, quasi stop

G72

radial rough car cycle

G17

Plane selection code

G73

seals the cutting cycle

G18

 plane selection code

G70

finishing cycle

G19

Plane selection code

G74

Axial grooving cycle

G10

data input mode effective

G75

radial grooving cycle

G11

Cancel data input mode

G76

Multiple thread cutting cycle

G20

Inch unit selection

G80

rigid tapping status cancelled

G21

 metric unit selection

G84

axial rigid tapping

G28

automatic return machine zero

G88

radial rigid tapping

G30

returns to the second, third and fourth reference points of the machine tool

G90

axial cutting cycle

G31

 jumper

G92

thread cutting cycle

G32

equal pitch thread cutting

G94

radial cutting cycle

G33

Z axis tapping cycle

G96

constant line speed control

G34

Variable pitch thread cutting

G97

cancel constant line speed control

G10

cancel tip radius compensation

G98

per minute feed

G41

tip radius left compensates

G99

for each turn of feed

G42

tool tip radius right compensation
