Recycling Material: HDPE, LDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, EPS
Final Product Shape: PelletsGranules

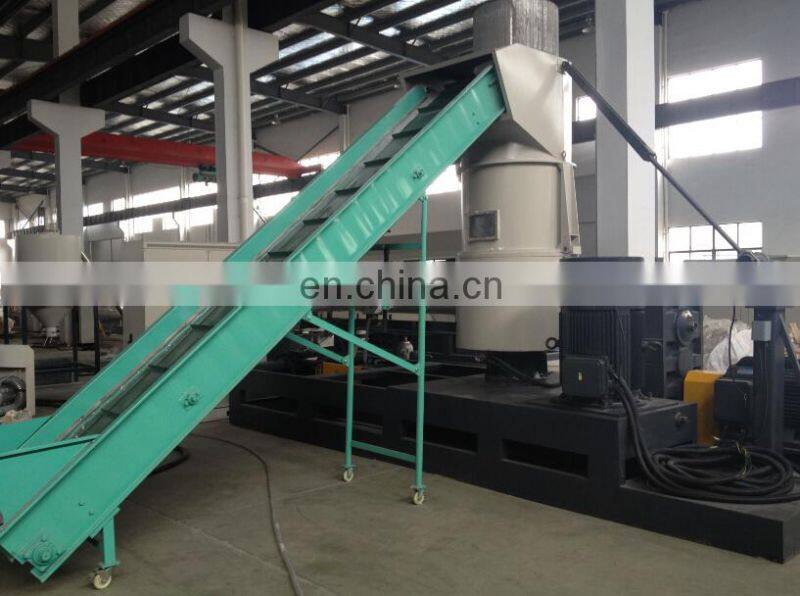

System Composition: Belt conveyor, cutting compactor, single screw extruder, pelletizing device, water cooling unit, dewatering section, conveying blower and production silo
Output Range: 150kg/h-1000kg/h
Feeding Device: Belt conveyor (standard),rolls hauling off device (optional)
Compactor Volume: 300-1200L
Diameter: 80-160mm
Screw material: 38CrMoAlA nitride steel(SACM-645),bimetallic(optional)
Screw L/D: 31/1, 32/2, 34/1, 36/1(depending on features of recycles)
Barrel's Heating: Ceramic heater or casting Aluminum heater
Barrel's Cooling: Air cooling through fan blowers
Vacuum Degassing: Double vented degassing(Standard)

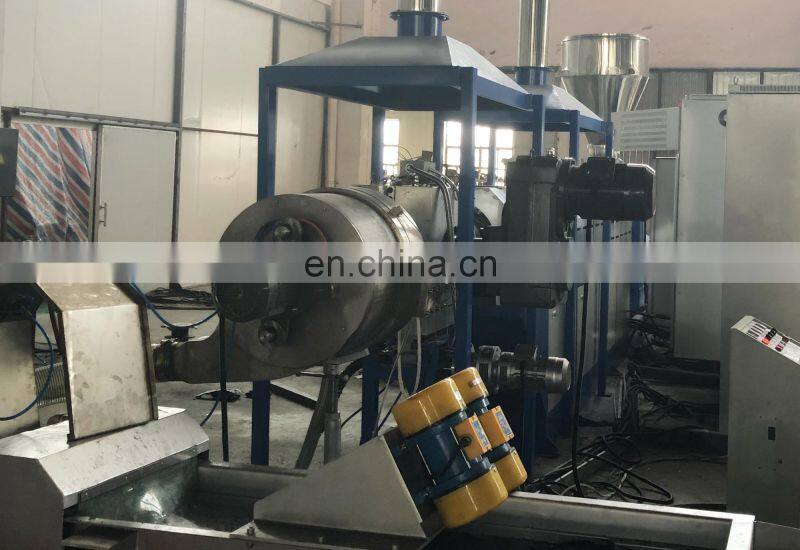

Pelletizing Type: Water ring die-face hot pelletizing
Optional Devices: Metal detector, rolls hauling off device, micro feeder for masterbatch, additives, chiller etc.

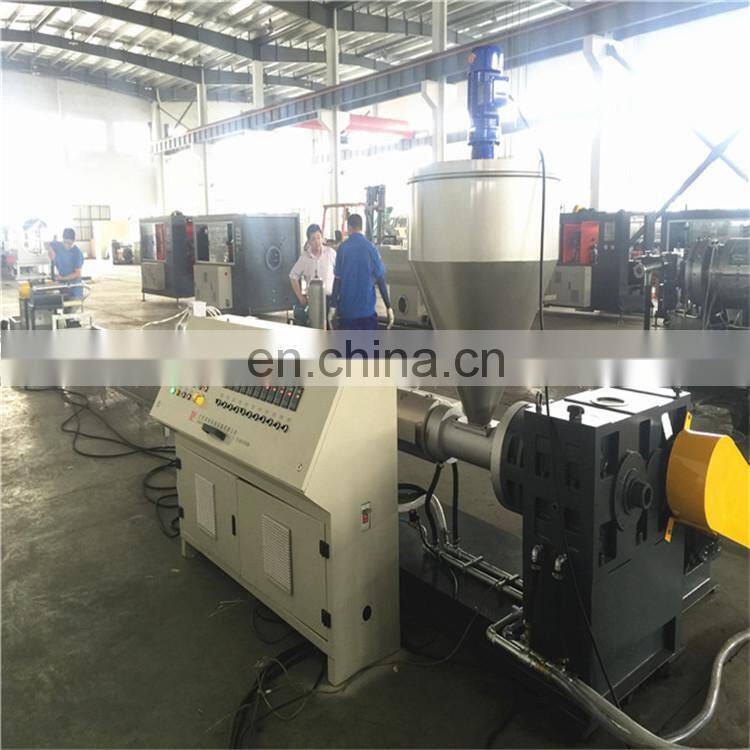

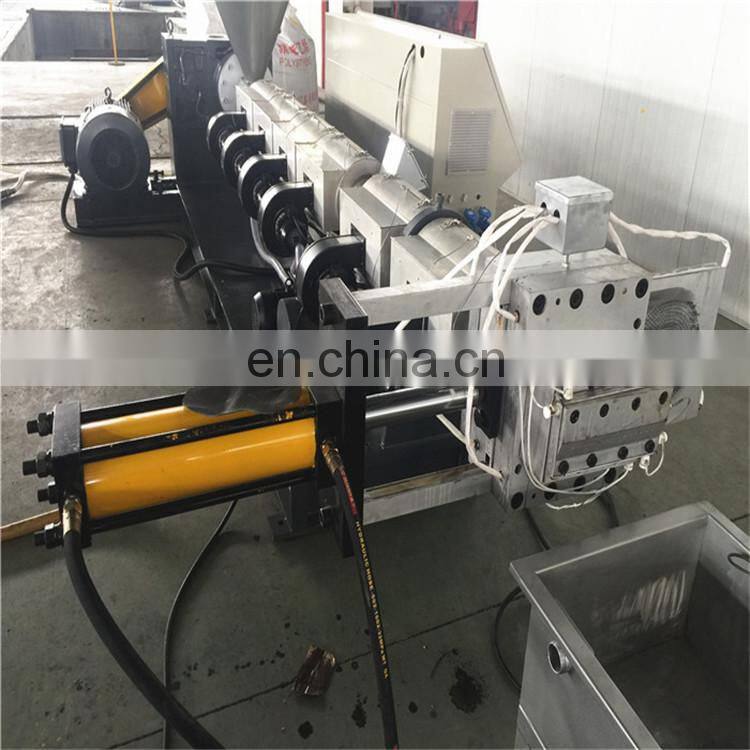

Process: the bulk materials or thick flakes after crushed, conveyed into the single screw extruder by screw feeder, then, compressing, plasticizing in the extruder and removed the violatile and moisture by the vacuum system, after filtering through the filtration system to pelletize into granules. Depends on different screw diameters of single screw extruders, capacity can cover 100 to 1000kg/h.

In the anti-bridging silo, rotors keep the plastic flakes in motion. This prevents the flakes from bridging and ensures flowability.
In the transition area between the flake conveyor and the extruder input, the feeding screw acts like a feeder. The flakes are gently transported continuously from the large-dimensioned feeder screw into the extruder. This arrangement facilitates the processing of flakes of different sizes (the flake size is of minor importance). The pressure on the plastic flakes increases steadily as they enter the extruder intake, in order to achieve high throughput rates.
All the components are positioned in close proximity to prevent oxidation of the material and to make optimal use of heat from the shredding process.

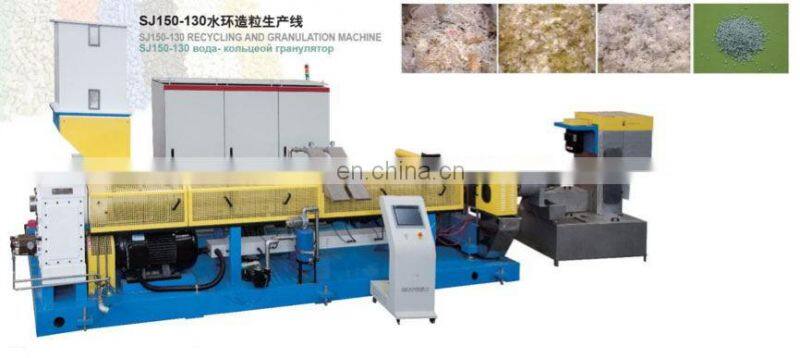

Two-stage pelletizing system applied in the re-pelletizing job,which consists of two sets of single screw extruder, in case that recycles are with heavy dirty or required more output.
Features of two-stage re-pelletizing system:
1,Segmented filtering principle, fore filtering in the first extruder, and fine filtering in the second extruder, to reduce the frequency of filtering sieves changing.
2,Thanks to separated filtering system in two-stage extruder system can realize steady extrusion job.
3,Has one more volatilization between first and second extruder.
4,Second stage,s extruder can present low temperature extrusion, which can guarantee the final production,s quality.
Process: Two-stage regranulation line has input one more set single screw extruder in the second stage, it is most suitable to the processes, which require better filtration and higher capacity performance.
Depending on the type and quantity of the material the line can be equipped with a water ring, strand or underwater pelletizing system.

. Why choose us?

1. Quality

We have more than 23 years manufacturing experience with more than 800 sets machine lines sold to worldwide. We have our own CNC
center to produce machine parts. And control the machine quality from the order confirm to engineers discuss & design, machine
processing, testing and delivery. We are one of the Top10 manufacturers for this business in China.

2. Price

Machine price determines your end product cost. Our machine price can make you earn back equipment investment in 2-3 months. We do
not sell the cheapest machine, just good quality at good price.

3. Service

We provide turnkey project and completely pre-sales and after-sales service, including project feasibility analysis, installation,
commissioning and training.
