DDCSV1.1 3/4-Axis CNC Motion Controller 500KHz Stepper Motor Driver
DDCSV1 CNC system uses ARM+FPGA design framework, ARM to complete the man-machine interface and code analysis, FPGA complete the underlying algorithm and control pulse generation part. Reasonable design, reliable control, convenient operation.
DDCSV1 panel layout is reasonable, the 17 key to complete common offline operation, support for the general purpose of FANUC G compatible.
This manual introduces the operation method of the DDCSV1, the machine tool and the operation procedure of the machine tool. Through a large number of illustrations and examples of the use of the DDCSV1 can learn to use the faster the CNC system.
Performance parameter:
- Ordinary digital input interface of 16-circuitoptocoupler coupling isolation
- Ordinary digital input interface of 3-circuit optocoupler coupling isolation
- Output interface of 0-10V spindle control port with analog quantity(can be modified as PWM output);
- Support the 3/4 axis stepper motor control, the highest control pulse output of single axis is500KHz;
- ARM9 main control chip;
- FPGA core algorithm chip;
- 4.3 inches TFT screen, resolution ratio: 480*272;
- 17 operational keys;

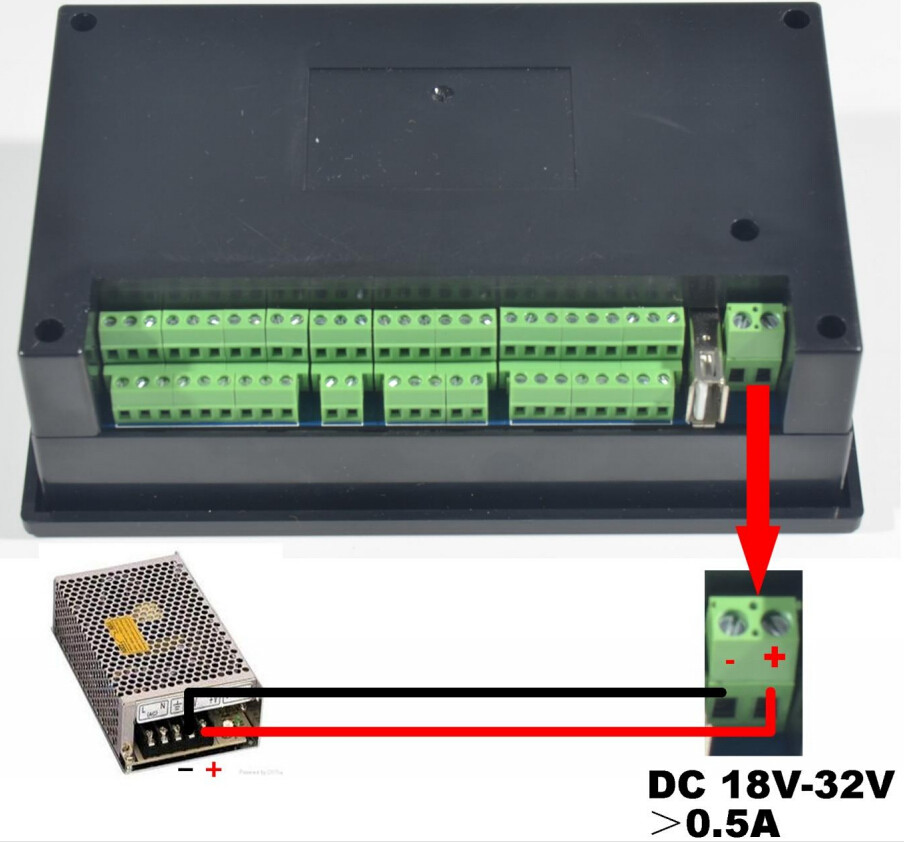

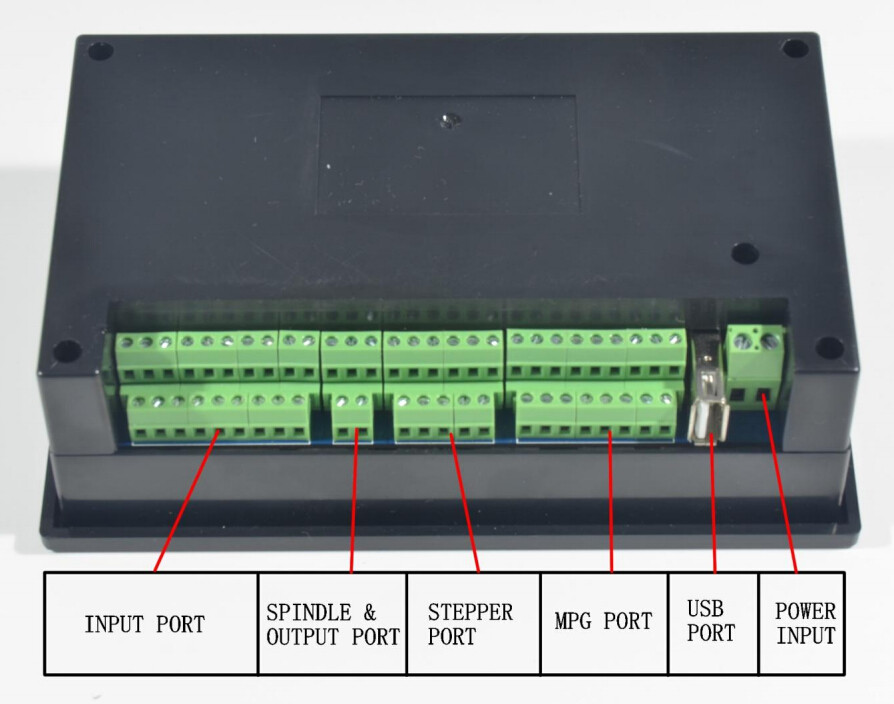

- The main control equipment is 18V-32V power input, the current capacity isrequired not to be lower than 0.5A;
- Support the USB flash disk to read the G code,and the size of G codefile has no requirement;

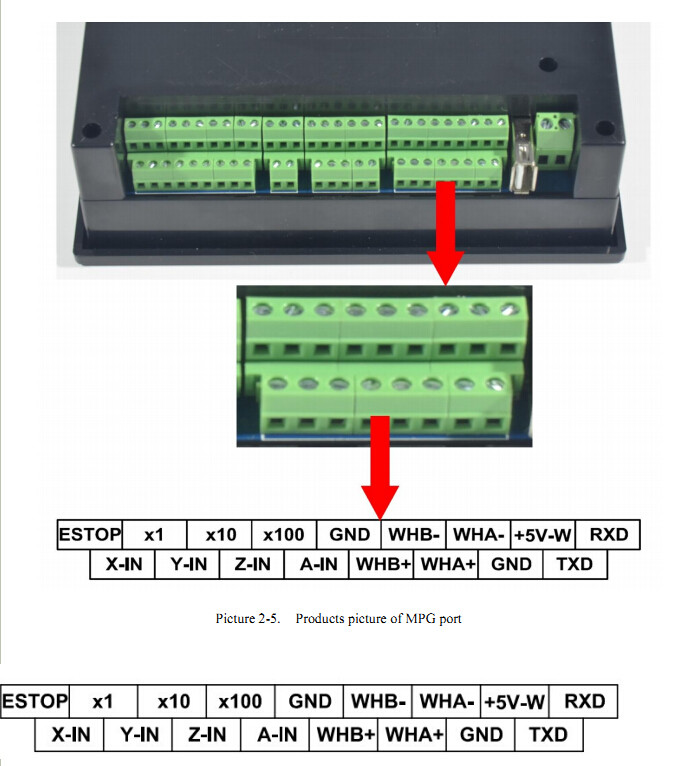

- Be equipped with MPG port and support digital display MPG as well as support the general MPG in the market.
- Support the panel key with single-axis manual operation, manual step and CONToperation;
- Support the operation of quickly specify the running position;
- Support the multi coordinate systems (with automatically saving function in case of power cut);
- Support the function of saving data automatically after power down (press the start to automatically save the data in the operation, automatically save the data after power down)
Outward Appearance, Structure and Size:
- The DDCSV1.1 adopts the embedded shell structure, which can punch a square hole on the equipment cabinet and then embed this equipment in the squire hole.
- Use two locking mechanism from the inside can fix this equipment on the equipment cabinet, with easy installation. The dimension figure of the product's outward appearance are as picture 1-1 and picture 1-2.
- The panel size of the product is 163mm*102mm*5mm;
- The size of main body is 156mm*93mm*45mm;
- The size of square hole installed on the equipment cabinet is 156mm*93mm
Package included:
- 1 x 3/4 axis motion controller
- 1 x 4GB USB Flash Drive
- 1 x USB Extension Cable
Package include:
- 1 x 4-Axis CNC Motion controller
- 1 x 8GB USB Flash drive
- 1 x USB Extension Cable
G00 Rapid Positioning
G01 Linear shavings
G02 Shun Circle / Spiral shavings
G03 Inverse Circle / Spiral shavings
G04 pause
G12 Clockwise circular shavings
G13 counterclockwise circle shavings
G17 circular interpolation plane is XY
G18 Circular interpolation plane ZX
G19 Circular interpolation plane YZ
G20 Inch programming
G21 Metric programming
G28 reference point through the intermediate point
G40 Tool radius compensation cancel
G41 Tool radius cutter compensation left
G42 right tool radius cutter compensation
G43 Tool length compensation positive
G44 negative compensation
G49 cancel length compensation
G53-G59 user coordinate system 1-6
G81 drilling cycles
G82 hole bottom suspend drilling cycles
Drilling cycle G83 chip
G90 absolute coordinate programming mode
G91 Incremental coordinate programming mode
G92 default coordinate system G92 can be used to adjust the position of the workpiece coordinate system
G94 programming units / min feed mode
G98, G99 fixed cycle Retract mode for G80-G83, you can set when the drilling is completed, it is to return to Z position or R position
